| Power rating |
3.6 KVA |
| Inputs |
Connection type |
Spring loaded clamp terminals (1.5-16 mm2 ) |
| Voltage and current rating |
-48 VDC,76 А |
| Outputs |
Connection type |
10 spring loaded clamp terminals |
| Nominal current rating |
24 A (with cross-section 2.5 mm2 ) |
| Maximum current rating |
30 A (with cross-section 4 mm2 ) |
| Overcurrent and Short Circuit Protection Parameters |
Overload protection: configurable 0.1 - 30 А (default setting 30 A)
Short circuit protection (trigging current 87.5 A) |
| Power consumption metering |
Separate power consumption metering on each output |
| Power-on delay between outlets |
Programmable (default delay 1 second) |
| Cords fixation |
Power cables fixation kit (option) |
| Indicator lights |
Input state |
- On/Off/Incorrect parameters/Activity
- Current/Voltage
|
| Сhannel state |
On/Off/Short circuit/Output overcurrent/Input overcurrent |
| Remote control and remote monitoring |
Input state |
- On/Off/Incorrect parameters/Activity
- Current/Voltage
|
| Сhannel state |
- On/Off/Short circuit/Output overcurrent/Input overcurrent
- Managing current cutoff thresholds and power-on delay
|
| Power consumption metering |
Separate power consumption metering on each output |
| Supported protocols |
- HTTP/HTTPS(WEB Interface/REST API)
- SSH
- SNMPv1, SNMPv2, SNMPv3, SNMP Traps
- SMTP
- RADIUS
|
| Automation (Watchdog) |
- Output channel (outlet) reset, if there are no responses to ICMP requests (pings)
- Output channel (outlet) reset, if the TCP port is unavailable
- Output channel (outlet) reset, when the current decreases
- Output channel (outlet) reset, if the miners hash rate decreases
|
| Standards compliance |
Electromagnetic compatibility |

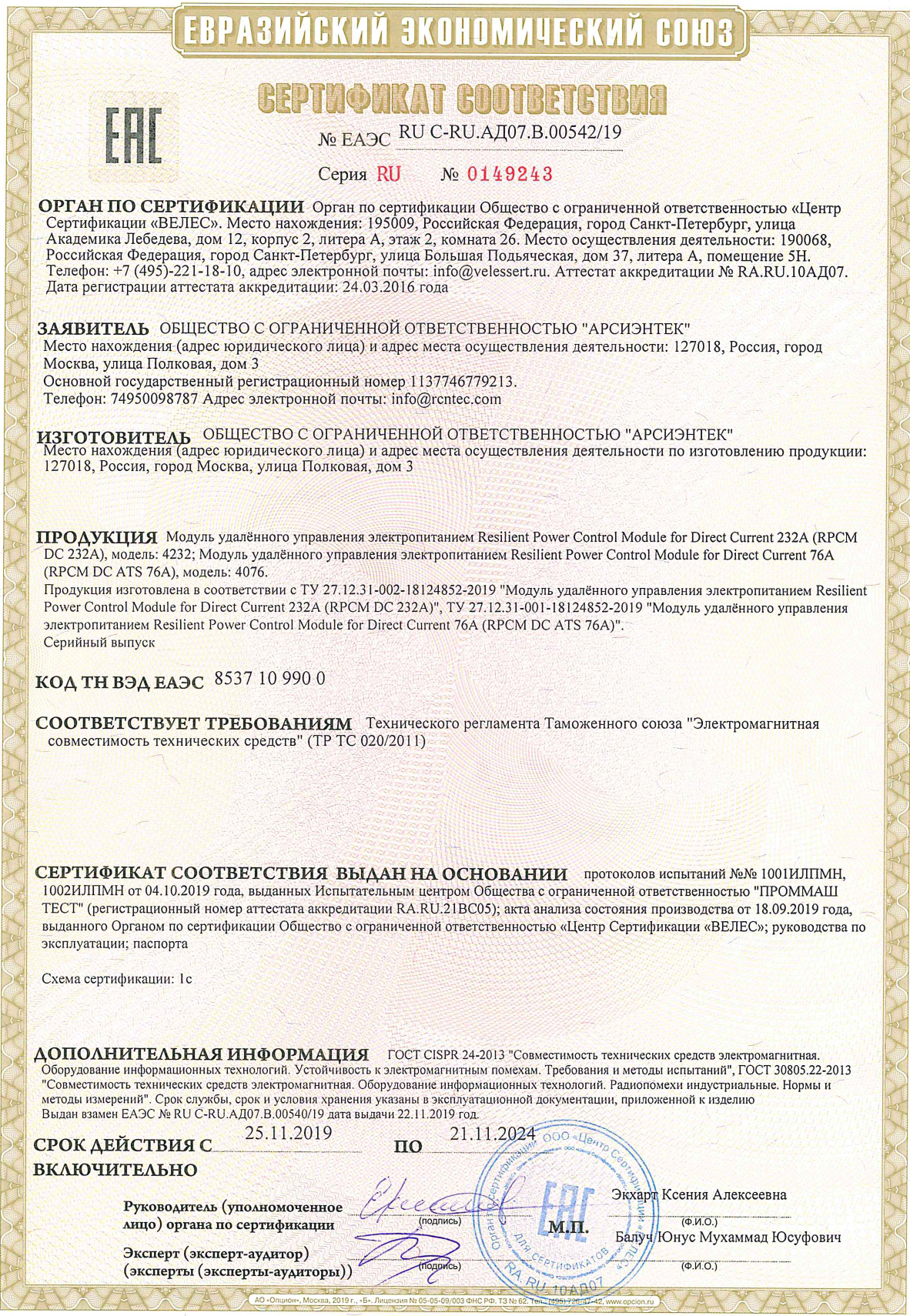

EAC (GOST30804 (IEC61000), GOST51317 (IEC61000)) |
| General parametres |
Communication interface |
Ethernet 10/100 Mbps |
| Accessories included |
Fixtures for installation in a 19 inch rack, quick install guide |
| Available options |
Extended fixtures for installation in a 19 inch rack, power cable organizer |
| Size (width x depth x height) |
440 x 365 x 44 mm, takes a standart 1U slot in a 19 inch rack |
| Module weight/included accessories/total weight with packaging (kg) |
5.2/1.21/8.13 |
| Operating temperature |
0 ~ +40 °С |
| Storage temperature |
-20 ~ +60 °С |
| Operating humidity |
45 ~ 85 % (no condensation) |
| Cooling |
Passive |
| Noise level |
Under 30 dBA (powering on/off and switching ports) |
| Default Warranty |
1 year |
